Chapter 1: Introduction
Introduction to the 1400 ISDN Telephone Introduction to the 1400 Series Digital Deskphones
The Avaya 1400 Series telephones are ISDN telephones for use with the Integral Enterprise call processing system. The 1400 Series Digital Deskphones are for use with the Avaya Aura™ Communication Manager call processing system. This user guide is written for the 1408 and 1416 Digital Deskphones. These deskphones put convenient features and capabilities at your fingertips, including a phone screen to view and manage your calls, a contacts list, a call log, a menu of options and settings to customize your phone, and access to your voice mail. They put convenient features and capabilities at your fingertips, including a display to view and manage your calls, a Call Log, a personal as well as a central phone book, a menu of options and settings to customize your phone, and access to your voice mail.
Not all features described in this user guide may be available on your telephone. If you find that a feature is not available, contact your system administrator.The descriptions of such optional features are marked with an asterisk in the title.
Overview of phone buttons and features

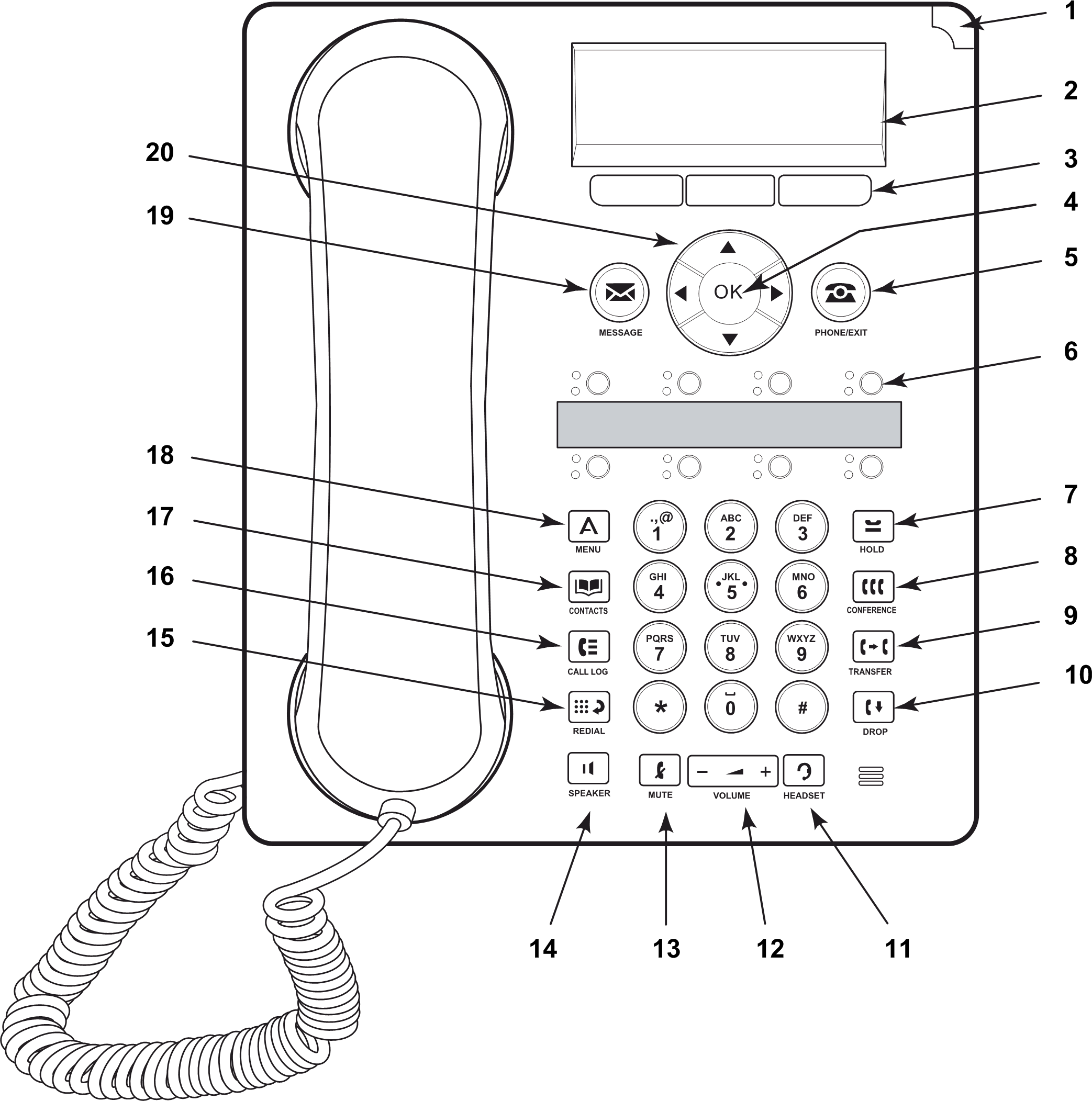

Avaya 1408 Telephone

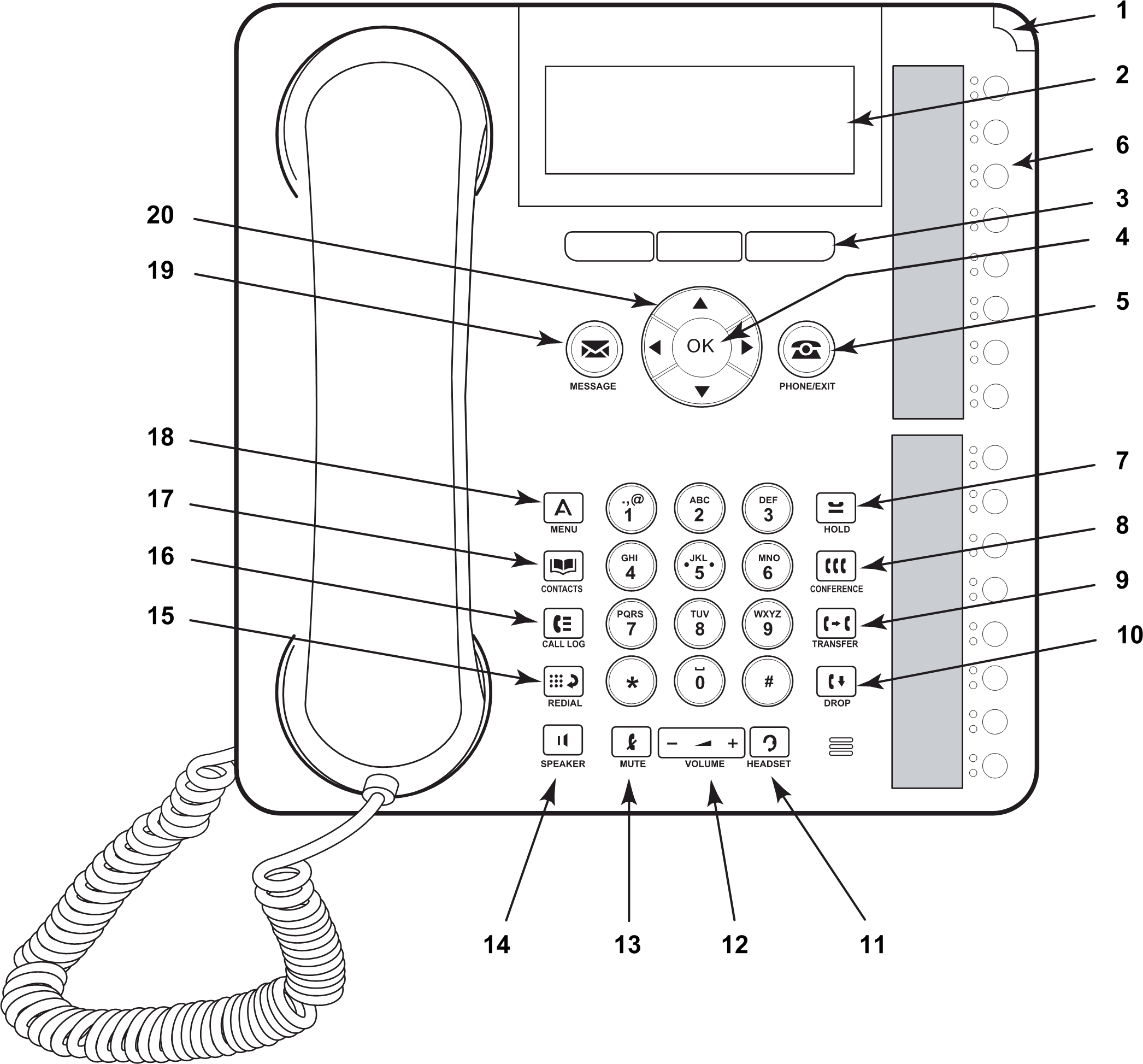

Avaya 1416 Telephone
About LEDs
Each function, partner or destination key has two LEDs, one green and one red, to indicate the status of the function or partner. The status is identified by whether the LED is on, off, or blinking as described in the following tables.
Note:
If a key is assigned to a destination the LEDs are always off.
Table 1: Function key LEDs
Table 2: Partner key LEDs
Related topics:
Introduction to partners on page 45
Icons in the telephone display
Icons are provided in the phone display to indicate the state of a call and navigation choices. The icons that appear in the phone display are described in the following table.
About this manual
Descriptions of optional features are marked with an asterisk in the title. For more information about the optional features, see your system administrator.
All the descriptions in this user guide assume a standard assignment of the function keys. If you re-assign the function keys, the procedures may change from those provided in this guide.
Chapter 2: Making calls
Introduction to making calls
Use the procedures provided in this chapter to make calls from your telephone.
Note that when you make a call, you can either dial the number and then lift the handset, or lift the handset and then dial the number. Both orders are correct. However, if you lift the handset first and then dial the number, you will not be able to correct a dialing error.
Calling an internal call number
- Enter the desired call number.
- Lift the handset.
Calling an external call number
- Enter the external line code, for example 0.
- Enter the desired call number.
- Lift the handset.
Calling with a destination key
- Press the destination key for the desired subscriber.
- Lift the handset.
Related topics:
Assigning functions or call numbers to keys
Calling a person from the call log
- Press the Call Log or the Redial button.
- Press the left/right arrow button, to select the appropriate list.
- Select the desired call number.
- Lift the handset.
Related topics:
Calling a person from the phone book entry
- Press the Phone book / Contacts button.
- Select the entry you want to dial.
Note:
To reach the entry more quickly, you can also enter one or more of the first letters of the name.
You can also search for a name or call number by using an asterisk “*” as a wild card (as you can on your PC). For example, if you input *mobile, all entries which include the string “mobile” will be displayed.
- Lift the handset.
Related topics:
Introduction to the phone book on page 39
Calling a person from a central phone book entry *
- Press the Phone book / Contacts button.
- Press the Main softkey.
- Enter one or more of the first letters of the name.
- Select the entry you want to dial.
- Lift the handset.
Related topics:
Introduction to the phone book on page 39
Calling using the speakerphone
The Monitoring function allows you to hear the person you are on a call with through the loudspeaker. The Handsfree function provides the Monitoring function and the ability to speak using the phone's built-in microphone, rather than the handset.
Both functions are operated by means of the Speaker button.
- Enter the desired call number.
- Press the Speaker button.
- To adjust the volume, press + or - on the Volume button.
- Do one of the following:
- To continue the call using the handset, lift the handset. To return to the speakerphone, press the Speaker button once more.
- To end the call, press the Speaker button.
Requesting automatic callback
If an internal call number you dialed is busy or unanswered, use this procedure if you want your telephone system to call you back when the number is no longer busy.
- Select the Automatic Callback menu item or Callback function key.
- Press the OK button.
- Replace the handset.
Your telephone system calls you back as soon as the called number is free or free again.
- Lift the handset
Your telephone system calls the dialled call number again.
- To delete the automatic callback again:
- Press the Callback softkey
- Select the desired callback request.
- Press the Details softkey.
- Press the Delete softkey.
Requesting automatic redialing
If the call number you dialed is busy, you can select Automatic redial to dial the busy number every 30 seconds.
- Select the Automatic redial menu item.
- Press the OK button.
The status information Redial repeat every 30 s is shown.
- Replace the handset, if you have lifted it.
Automatic redial is stopped if you press any button or lift the handset. After you have finished you will be asked Continue redial ?
Joining another call (cut-in)*
You call an internal extension. The user is already on a call. Use this feature to join the call.
This feature may not be available. Your system administrator must configure it for your extension as well as for the extension of the other person. See your system administrator for more information.
- Select the Cut-in menu item.
Each person on the call will hear a cut-in tone.
- To disconnect from the call, select Cut-in again, press the Drop button, or replace the handset.
Chapter 3: Handling calls
Introduction to handling calls
When you receive an incoming call your telephone rings, the Incoming Call LED flashes and the call is indicated in the display.
You can lift the handset or use the Speaker button and talk with the handset on-hook. You are also able to answer an incoming call ringing at another telephone in your telephone system, or put an incoming call on hold until you are able to answer the call.
Internal and external calls have different ringing tones.
Answering a call
To answer a call, lift the handset or press the Speaker button to use the speakerphone.
Answering a call ringing at another phone (pick-up)
- Enter the number of the ringing telephone with your handset on-hook. The status message Pick-up is shown in the display.
- Select Pick-up .
- Press the OK button and wait until the call is signalled at your phone.
- Lift the handset.
If you want to pick up calls for a particular telephone, you can set up a macro. So you can press a single key to answer calls ringing at that telephone. See chapter Setting up a macro (diversion and pick-up) for more information.
You can also pick up calls by entering a code, if your telephone system is administered for the pick-up function. See your system administrator for more information.
Related topics:
Setting up a macro (diversion and pick-up) on page 76
Putting a call on hold
You can put an active call on hold or an incoming call that you have not yet answered. When you put an incoming call on hold, the ringing tone is turned off, and the call LED continues to flash. Putting an incoming call on hold is useful when you are performing another task, such as editing a phone book entry, that you want to complete before you answer the call.
- Press Hold button, the active call will be keep on hold and you get a possibility to call another subscriber.
- Press Drop key to return back to the call or select the call on hold and press OK.
Muting a call
- Press the Mute button during a call so that the other person cannot hear you.
- Press the Mute button again to unmute the call.
Deactivating your telephone display
Use this procedure to deactivate the call number of caller in the display. An example of when you might want to do this is if you do not want the name or number of the person with whom you are talking to appear in your telephone display.
- Press the Display softkey.
Transferring a call
The display is deactivated and the call number is not stored in all the call log lists.
- To reactive the display, press the Display softkey again.
Note:
When you deactivate your telephone display, the call number is not stored in the call log.
Transferring a call
- Select new call to ....
- Press the OK button.
Your first call is put on hold.
- Dial the appropriate call number.
- When the party answers, announce the call.
If the party does not answer, press the Drop button to return to the call on hold.
- Press the Transfer button or hang up.
Answering an additional call (second call)
The feature Second call is activated on your telephone.
Use this procedure to answer an incoming call while on another call.
- While on a call, select the number or name of the second call in the display.
- Press the OK button.
You are connected to the second call and the first call is put on hold.
To end the first call instead, press the Drop button.
Turning second incoming call on or off
If you do not want to answer an additional call (second call) during a call, you can deactivate the second call.
- Select Second call in the display.
- Press the OK button.
- Press the On/Off softkey.
- Press the Done softkey.
- To activate the second call again from the Avaya Menu select Settings > Display/ Acoustics > Second call and change the setting with the On/Off softkey.
Referring back during a call (consultation call)
Use this procedure to make a consultation call while on a call.
- Select new call to ....
- Press the OK button.
Then your first call is on hold.
- Enter the call number of the person whom you want to consult.
- If the second call is not answered, you can return to the first by pressing Drop.
Chapter 4: Call diversion
Introduction to call diversion
You can divert your calls to someone else. Different kinds of call diversion are possible:
- to: first destination unconditional
- to: alternative destination unconditional
- on busy: destination only when you are busy
- Ex.aft.time : destination for delayed call diversion (after time) only for external calls *.
- Int.aft.time: destination for delayed call diversion (after time) only for internal calls *.
- Double call: you set up your telephone so that another telephone rings together with it at the same time *.
* You need a special authorization to use this kinds of the feature. Please refer to your system administrator
If you have activated delayed call diversion, you may decide from case to case to answer a call yourself or to divert it after a certain time.
A particularly convenient way to set up a call diversion is to use a macro. You can then enable or disable this call diversion by pressing a single key.
Related topics:
Setting up a macro (diversion and pick-up) on page 76
Diverting calls
You want to divert your calls to someone else.
- Press the Avaya Menu button.
- Select Divert call .
- Press the OK button.
- Select the appropriate kind of diversion.
- Enter the desired call number.
- Press the OK button.
The status information DIV to call number appears in the display and the LED lights up.
- To withdraw the diversion, select the appropriate status information and press the
OK button .
Related topics:
Diverting calls to voicemail on page 43
Automatic call diversion *
Call diversion can be set in advance for a certain time slot. It is controlled by times and weekdays.
You need an appropriate authorization for this feature. Please ask your system administrator. Two alternative destination numbers with different time slots can be programmed.
Automatic call diversion can override a call diversion that was set up manually. Once the automatic call diversion has finished, the manual call diversion becomes active again.
Call diversion on busy, Delayed call diversion and Double Call cannot be controlled using time slots.
First you have to define the time slot by Start time, Stop time and weekday. Afterwards you can activate or deactivate it.
Defining automatic call diversion *
Use this procedure to define the call number, time slot and weekdays, when you want all your calls diverted automatically.
- Press the Avaya Menu button.
- Select Divert call .
- Press the OK button.
- Set automatic
Diverting calls automatically *
- Press the OK button.
- Enter the desired call number.
- Select Start time.
- Enter the time with hour and minutes.
- Select Stop time.
- Enter the time with hour and minutes.
- Select weekday.
- Press the OK button.
- Select the appropriate pattern, for instance Mo-Fr.
If you scroll down you can also set the properties for the second automatic call diversion.
Diverting calls automatically *
Use this procedure to automatically divert your incoming calls according to the time slot, weekday, and call number you have defined.
- Press the Avaya Menu button.
- Select Divert call .
- Press the OK button.
- Select Automatic 1 or alternative Automatic 2.
- Press the OK button.
The status message DIV to call number appears in the display and the LED lights up.
- To withdraw the diversion, select the appropriate status information and press the
OK button .
Introduction to follow-me *
When you are going to visit several colleagues one after the other and don't want to miss any call arriving meanwhile, you use the follow-me function.
This function allows you to use other telephones to set up or change the call diversion on your telephone.
You need to prepare this function on your own telephone first.
The follow-me function is prepared, activated and switched off by means of particular codes. The first one is used on your own telephone, the second on other telephones. Please ask your system administrator for the appropriate codes.
Preparing follow-me on your own telephone
- Lift the handset.
- Press the asterisk * .
- Enter the first code.
- Replace the handset.
Activating follow-me on another telephone
When you arrive at the other telephone, you activate the prepared follow-me function, to divert your incoming calls to this other telephone.
- Lift the handset.
- Press asterisk * .
- Enter the second code.
- Dial your own call number.
- Replace the handset.
Switching off follow-me on your own telephone
When you are back at your own telephone, you switch off the follow-me function.
- Lift the handset.
- Press hash # .
- Enter the first code.
- Replace the handset.
Switching off follow-me on another telephone
If you don't want to return to your own telephone, you can switch off the follow me function on another telephone.
- Lift the handset.
- Press hash # .
- Enter the second code.
- Dial your own call number.
- Replace the handset.
Introduction to three-party conference calls
You can use a three-party conference call to speak with two people at different locations on the same call. If the Multiple Conference feature has been enabled in your telephone system, up to seven people can be included in the conference call.
A conference between a call waiting (second call) and the first talking party is not possible.
Related topics:
Introduction to multiple conference calls on page 31
Making a conference call
- While active on a call, press the Conference button.
- Enter the call number for the additional participant or use phone book/ destination key.
When the additional participant answers, you are in a three-party conference.
- If the additional participant does not answer, press the Drop button to return to the first call.
If you use the new call to … menu item to call the additional participant, you can first talk to the participant privately while the first caller is on hold. Then use the Conference button to connect all participants.
Talking with one participant in a conference call
Use this procedure if you are on a three-party conference call and want to talk privately with one participant.
- Select the call number menu item of the participant with whom you want to talk privately.
- Press the OK button.
You can talk privately with the desired participant, while the other call is on hold.
- To return to the conference press the Conference button or select conference with
from the menu.
Connecting conference participants with each other
If you are on a three-party conference call and want to connect the other participants to each other, press the Transfer button or replace the handset.
Ending the conference call
Press the Drop button.
Introduction to multiple conference calls
If the Multiple conference feature has been enabled in your telephone system for your extension, you can include up to seven people in a conference call. (Otherwise you can use the three party conference.) The person who is responsible for initiating the conference is the controller. The others are passive participants.
Controller
The controller manages the conference and controls all participants and their status by means of the List of all conf. users. When the third participant is added in the conference, the List of all confer. users menu item appears. It shows the number of conference participants as well as name, call number and status of each. There are three possible status values:
- No details: the participant is taking part in the conference.
- X : the participant is on hold, when he has initiated a refer-back for example.
- ! : the participant is taking part in the conference on behalf of another previous participant.
If there are only three participants in the multiple conference, the display is almost identical to the display of a three-party conference. Instead of the List of all confer. users menu item the conference participants are shown in the status information.
During a multiple conference, the controller can neither transfer calls nor cut in on calls.
The controller can usually have one connection on hold or eight connections on hold if Hold/ Retrieve is enabled.
Passive participants
Passive conference participants are added to the multiple conference by the conference controller. Their displays indicate the status information Conference.
Passive participants cannot set up another conference, but they can ...
- ... enter their connection in another conference.
- ... enter their connection in the queue by refer-back and then switch back to the conference.
- ... transfer their conference connection to another subscriber by refer-back.
- ... end their participation in the conference.
Related topics:
Introduction to three-party conference calls on page 29
Adding a participant to a multiple conference call
- While active on a call, press the Conference button. The multiple conference is put on hold.
- Enter the call number for the additional participant.
When the additional participant answers, the multiple conference is reactivated including the new one. When the third participant is added in the conference, the List of all confer. users menu item appears.
- If the additional participant does not answer, press the Drop button to reactivate the multiple conference.
If you use the new call to … menu item instead to call the additional participant, you can first talk to this participant privately while the conference call is on hold. Then use the Conference button to reactivate it including the new participant.
Adding a participant by referring back
Use this procedure to add a participant to your multiple conference call via a consultation call. If you select the new call to menu item to call the additional participant, you can first talk
privately while the others are waiting and afterwards build the conference with the Conference
button.
- Select new call to ....
- Press the OK button.
The multiple conference is put on hold.
- Enter the call number for the additional participant.
When the additional participant answers you can talk privately, while the conference call is on hold. If the additional participant doesn't answer press the Drop button to return to the multiple conference call.
- Press the Conference button
The multiple conference is reactivated including the new participant. When the third participant is added, the List of all confer. users menu item appears.
Adding a waiting participant to a multiple conference
You are controller of a multiple conference having several waiting participants. That is, there are several refer-backs waiting. You can switch from one to another.
- Select the appropriate refer-back back to ....
- Press the OK button.
You are now reconnected with the waiting participant. The multiple conference is put on hold.
- Press the Conference button
The waiting participant is added to the conference and the multiple conference is reactivated.
To disconnect this connection instead, press the Drop button.
To switch back to the waiting conference call, select Back to conference .
Answering a call in a multiple conference
Use this procedure to answer an additional call while you are controller of a multiple conference.
- Select the appropriate status information call number of the calling person.
- Press the OK button.
You are now connected with the new calling person. The multiple conference is put on hold.
- Press the Conference button, if Hold/Retr is activated.
The new caller is added to the multiple conference and the multiple conference is reactivated.
Transferring a multiple conference call as controller
Use this procedure to leave a multiple conference as controller without ending it.
- Select Transfer conference ....
- Press the OK button.
The multiple conference continues without a controller, but at the original controller’s responsibility.
When you are in the state Hold/Retrieve locked/disabled, you can alternatively replace the handset.
Ending the multiple conference call as controller
To end a multiple conference call as controller, replace the handset or press the Drop button.
Referring back as passive participant on a multiple conference call
Use this procedure to make a consultation call while on a multiple conference call as passive participant.
- Select new call to ....
- Press the OK button.
The controller is made aware of this in the List of all confer. users.
- Enter the call number of the new conference participant.
- Once you are connected to this person, you can replace the handset to transfer the conference connection.
The controller is made aware of this in the List of all confer. users.
- To return to the multiple conference, if the called person does not answer, press the
Drop button.
Disconnecting from a multiple conference call as passive participant
To disconnect from a multiple conference call as passive participant, replace the handset or press the Drop button.
Chapter 8: Managing the call log
Call log
You can use the call log to view a list of your recent calls or view separate lists of your outgoing, answered, or missed calls. Icons indicate the history of the calls:
The most recent entry is at the top of each list. If you select one entry and press the Details
softkey, you get a detailed display, including the time of the selected call.
You can selectively retrieve individual numbers and, if necessary, dial them. You can easily transfer a call number from the call log into your phone book.
Related topics:
Calling a person from the call log on page 14
Viewing the call log
You can view a separate list of all, answered, outgoing, or missed calls.
- Press the Call Log button.
- Press the left/right arrow button, to select the appropriate list.
- Select the appropriate entry.
- Press the Detailed softkey or the ok button.
The detailed display of the appropriate entry is shown.
Removing an entry from the call log
- Press the Call Log or the Redial button.
- Press the left/right arrow button, to select the appropriate list.
- Select the desired call number.
- Press the OK button.
- Press the Delete softkey.
The entry is deleted immediately without confirmation prompt.
Adding an entry from the call log to the phone book
- Press the Call Log or the Redial button.
- Select the desired call number.
- Press the Details softkey.
- Press the Down navigation button
- Press the More button
- Press the +Contact softkey.
- Enter a name if required.
- Press the Save softkey.
If an entry with the same call number already exists in the phone book, the status information
Number already exists is displayed.
Chapter 9: Managing the phone book
Introduction to the phone book
Your telephone has a personal phone book. There you can store up to 268 phone numbers with their associated names, which are available only on your telephone.
You can then dial phone book numbers quickly and easily. You can modify the individual phone book entries yourself.
If you have authorization to access the main phone book, you can also find and dial entries there.
Entries from the redial list, call list and call log can be quickly and easily saved in the phone book. You can easily assign a phone book entry to a destination key.
Related topics:
Calling a person from the phone book entry on page 14 Calling a person from a central phone book entry * on page 15
Creating a new entry in the phone book
The number of free slots in your local phone book are displayed in the phone book status line.
Note:
You can add a caller's phone number to the phone book while you are talking to them: Press the +Contact softkey.
- Press the Phone book / Contacts button.
- Press the New softkey.
- Enter name and call number.
Additionally you can enter a remark in the input field Rem. (max. 12 letters).
- Press the OK button.
- Press the Save softkey.
Adding an entry from the call log to the phone book
- Press the Call Log or the Redial button.
- Select the desired call number.
- Press the Details softkey.
- Press the Down navigation button
- Press the More button
- Press the +Contact softkey.
- Enter a name if required.
- Press the Save softkey.
If an entry with the same call number already exists in the phone book, the status information
Number already exists is displayed.
Editing an entry in the phone book
- Press the Phone book / Contacts button.
- Select the entry you want to edit.
- Press the OK button.
- Edit the entry.
- Press the Save softkey.
Note:
To reach the entry more quickly, you can also enter one or more of the first letters of the name.
You can also search for a name or phone number by using an asterisk "*" as a wild card (as you can on your PC). For example, if you input "*mobile", all entries which include the string "mobile" will be displayed.
Deleting an entry
Deleting an entry
- Press the Phone book / Contacts button.
- Select the entry you want to delete.
- Press the More softkey.
- Press the Delete softkey.
Chapter 10: Voicemail System
Introduction to voicemail
Callers can leave messages for you similar to an answering machine, if a voicemail system is connected to your telephone system. You can call to retrieve these voice messages. Further more you can receive conventional text messages from a server.
The light at the right upper corner of your telephone indicates that you have voicemail messages waiting.
Diverting calls to voicemail
Use the procedure Diverting calls and enter the call number of your voicemail system as destination.
To withdraw the diversion, select the appropriate status information and press the OK button.
Related topics:
Managing voice messages *
The light at the right upper corner of your telephone indicates that you have voicemail messages waiting.
- Press the Message button.
- Select to the desired entry.
- Press the OK button.
Your telephone switches to handsfree and dials the call number of the voicemail system. Then you are guided through the operations of the voicemail system.
- To listen the voice message, follow the advice of your voicemail system.
- To delete the voice message, press the Clear softkey.
The appropriate entry flashes. Press the Clear button once more or the OK button to confirm.
Deleting all messages
The light at the right upper corner of your telephone indicates that you have voicemail messages waiting.
- Press the Message button.
- Select Delete all messages.
- Press the OK button.
The selected menu item starts flashing.
- Press the OK button to confirm.
Chapter 11: Partners
Introduction to partners
Your system administrator can link together up to 16 telephones in your telephone system to create a partner group. You can set up your telephone so that you hear a short tone when one of your partners is called (partner beep). You can also set up and, if required, delete several partner diversions by pressing a few keys. To do this, the Deputy key function key must be set up.
By default, all partners are assigned to function keys, also referred to as partner keys. The LEDs of the partner keys provide information about your partners' activities.
Related topics:
Assigning functions to keys on page 72 Creating a destination key on page 73
Setting up partner names
You can allocate a long and a short name to each partner call number.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt my partners….
- Press the OK button.
- Select Set partner name.
- Press the OK button.
- Select the call number of the desired partner.
- Press the OK button.
- Select Long name.
- Enter the appropriate name.
- Select Short name.
- Enter the appropriate name.
- Press the Done softkey.
Calling partners
- Press the appropriate partner key.
- Talk using the speakerphone, or lift the handset to talk using the handset.
Answering a call for a partner
When a partner's telephone rings, the corresponding LED on your telephone flashes. You can pick up that call and answer as deputy.
- Press the Partner key and wait until the call reaches your own telephone.
- Lift the handset.
Assigning partners to another key
By default, all partners are assigned to the function keys. Use this procedure to assign a partner to a different key.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt my partners….
- Press the OK button.
- Select Change Partner position.
- Press the OK button.
- Select the desired partner.
- Press the OK button.
- Press the partner or function key that you want to assign. The previous key assignment is displayed.
- Press the Save softkey.
The partner is now assigned to the new key.
Hiding partner keys
Use this procedure to hide the partner signaling for one of your partners.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt my partners….
- Press the OK button.
- Select Hide/show partner keys .
- Select the partner key whose partner signalling you don't want to get any longer.
- Press the Change softkey.
- Press the Done softkey.
Activating partner beep
Use this procedure if you want to hear a short tone (beep) every time your partner is called.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt my partners….
- Press the OK button.
- Select Set partner beep....
- Press the OK button.
- Select the partner for whom you want to activate the partner beep.
- Press the OK button.
- Select Audio.
- Press the Change softkey several times to select one of the following:
- Beep
- Ringing tone
- off
- Press the Done softkey.
If you set Ringing tone instead of Beep, the normal ringing tone sounds on your telephone when your partner is called.

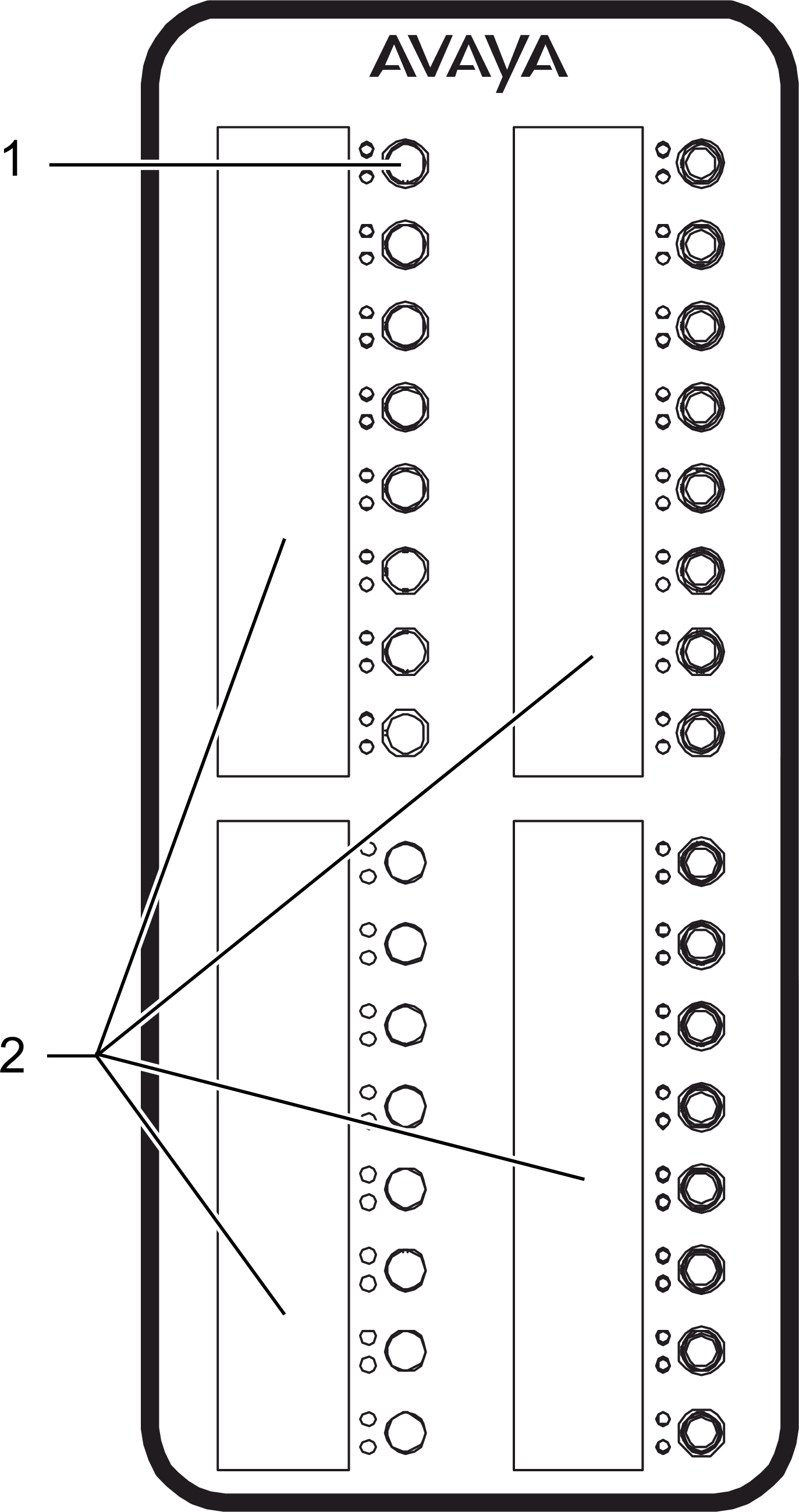

Assigning partners on the button module*
Use this procedure to transfer all your partners from your telephone's keys to the keys of a button module.
Note:
The button module is not supplied as standard with your telephone.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt my partners….
- Press the OK button.
- Select Assign partner to DSS module.
The partners are transferred to the LEDs of the button module in their current order. The previous key assignments on the buttons are overwritten.
- Select Assign partner to telephone in order to transfer the partners back to the telephone. The former key assignments of the button module are re-established.
Diverting your calls to a partner
Use this procedure to divert your calls from outside the partner group to one of your partners.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Set/delete partner div ….
- Press the OK button.
- Select Partn. div. from my phone....
- Press the OK button.
- Select the partner to whom you want to divert calls, displayed with off
- Press the OK button.
- Select on
- Press the OK button.
The partner diversion is now activated, displayed in the status information.
Related topics:
Setting up a macro (diversion and pick-up) on page 76
Diverting partner calls to your telephone
You want to answer calls on behalf of your partners. Use this procedure to divert their calls to your own telephone.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Set/delete partner div ….
- Press the OK button.
- Select Partner div. to my phone....
- Press the OK button.
- Select the partner, whose calls you want to divert to your telephone, displayed with
off
- Press the OK button.
- Select on .
- Press the OK button.
Partner diversion is now activated. The appropriate LED flashes.
Related topics:
Setting up a macro (diversion and pick-up) on page 76
Diverting calls from one partner to another *
If you have the appropriate authorization, you can set up a partner diversion from any partner to another.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Set/delete partner div ….
- Press the OK button.
- Select Partnerdiv. from/to others.
- Press the OK button.
- Select Set partner division.
- Press the OK button.
All partner are displayed.
- Select one of the partners as source for the diversion.
All possible combinations with this source partner are displayed.
- Select the combination with the target partner to whom you wish to divert calls.
- Press the OK button.
The selected combination is displayed with off.
- Press the Change softkey.
The selected combination is displayed with on
- Press the Done softkey.
Partner diversion is now activated.
Diverting partner calls to partners, extended *
If you have the appropriate authorization, you can divert any call of a partner group to any call number for another partner. This means that call diversion can be activated to a partner's mobile or home call number.
A maximum of five status displays for extended partner diversion can be displayed. Partner names are replaced by the number in extended partner diversion.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Set/delete partner div ….
- Press the OK button.
- Select CFF partner diversion key 1..5.
- Press the OK button.
- Press the Enter softkey.
- Select the partner whose calls shall be diverted.
- Press the OK button.
- Enter the call number.
- Press the OK button.
- The function key is allocated.
Related topics:
Setting up a macro (diversion and pick-up) on page 76
Setting the deputy key *
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Set/delete partner div ….
- Press the OK button.
- Select Set deputy key.
- Press the OK button.
- Press Deputy to select the partner, from whom you want to divert .
- Press the OK button.
- Select partner and select all partners you want to define as your deputies and turn them to on.
- Press the OK button.
- Now the deputies are selected, you need to program the function key “deputy key” to activate/deactivate of defined deputy diversion.
Related topics:
Setting up a macro (diversion and pick-up) on page 76 Function and destination keys on page 71
Adding a partner to a partner group *
Use this procedure to add a new partner to your partner group.
The phone numbers of the subscribers in the partner groups must be set up by your system administrator.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt partner group size.
- Press the OK button.
- Select Expand partner group.
- Press the OK button.
- Enter the call number of the partner you want to add to your partner group.
- Press the key to which you want to assign the new partner.
Removing a partner from a partner group *
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt partner group size.
- Press the OK button.
- Select Reduce partner group.
- Press the OK button.
- Select the partner who you want to remove.
- Press the Delete softkey.
Restricting partner signaling *
Use this procedure if you don't want the partners displays to show whether you are on a call, whether you are being called, whether a call diversion exists for you, etc.
The "Restrict partner signaling" function must be enabled by your system administrator.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications/Partner.
- Press the OK button.
- Select Partner …
- Press the OK button.
- Select Adapt partner group size.
- Press the OK button.
- Select Restrict signaling Off.
- Press the Change softkey. The display switches to On.
- Press the Save softkey.
- To enable partner signaling again select Restrict signaling On.
Reserving a line as executive line
You can reserve an external line for another partner (executive) using your telephone. In this way, for example, a secretary can reserve a line for the boss.
The Executive function key must be set up on the secretary's telephone by the administrator.
- Press the Executive key.
- Press the partner key of the partner for whom you want to reserve a line.
- Press the OK button.
The status message Line busy appears in the display of the partner telephone. The partner can continue to dial as usual.
Related topics:
Assigning functions to keys on page 72
Setting up a connection for a partner
Your partner (executive) asked you to set up a connection substitutionally.
- Make a call to the appropriate call number.
- Select New call to...
- Press the OK button.
- Press the partner key.
- Replace the handset.
The partner is connected to the other party. Your own telephone is free again. This procedure is like Transferring a call with the help of the partner key, further more you don't need to wait for the other person answering.
Filtering *
Filtering is a function for executives and their secretaries or receptionists. Filtering groups are formed with several executives and several secretaries for this purpose. An incoming call for an executive is initially signaled at the secretary's telephones. If required, it can subsequently be transferred to the executive. The filtering function is a special partner diversion.
The executives activate the filtering function for external or internal or for all calls. In general, the secretaries can switch on or off to control their readiness to receive a call. When filtering is active, a filtered call is signaled at all active secretary's telephones in the filtering group. The connection is established to the receptionist who accepts the call first.
The system administrator initializes the filtering function and sets up the filtering groups. Filtering can be activated for one executive to several receptionists. One receptionist can deal filtering for several executives.
You as a member can assign the function keys for filtering, only if the filtering function has been initialized by your administrator. You can set up the names and a partner beep. But you cannot alter the filtering group.
Related topics:
Assigning functions to keys on page 72
Dealing the filtering function as an executive *
Your telephone has two toggle function keys INT and EXT with LEDs. The display shows you:
- < which receptionists are ready to get your incoming calls.
- > which other executives have diverted their incoming calls.
- To activate the filtering function for incoming external or internal calls or all calls, press the Ext or the Int function key or both of them.
- To withdraw the filtering function, press the appropriate key once more.
Dealing the filtering function as a secretary *
Your telephone has a FILTER function key. The according LED as well as the status display remain active as long as filtering is active for at least one executive. Furthermore the display shows you
- > which executives have diverted their incoming calls.
- < which other receptionists are also active for filtering.
- To activate the filtering function, press the Filter function key.
- To accept a signaled call, lift the handset or press the Speaker button.
- To transfer an accepted call to the executive, press the appropriate partner key and the Transfer button or replace the handset.
- To deactivate the filtering function, press the Filter function key again.
Chapter 12: Private User Mobility
Private User Mobility *
The Private User Mobility feature allows you to log on to any telephone inside the telephone system and have access to your personal settings (call list, redial, call diversion, and callbacks). Callers will reach you on this telephone when they dial your call number. Charging units incurred are allocated to your call number.
To use the PUM function, it must be enabled in the telephone system. Furthermore two function keys must have the functions Log on and Log off assigned to them (look at the UsersGuide).
This function is protected by the same PIN as the locking function. To use PUM, this PIN have exact six digits.
Related topics:
Assigning functions to keys on page 72 Changing the PIN on page 92
Logging on to the telephone
- Press the Log in user function key.
- Enter your personal call number.
- Select Password:.
- Enter your PIN.
The PIN is displayed by asterisks *.
- Select Log in user.
- Press the OK button.
A status message appears in the display. You are now logged in to this telephone and you can use it exactly like your own set.
Logging off the telephone
Press the Log out user function key.
Your personal settings (call list, redial, call diversion, callbacks entered) are cleared.
Note:
You are logged off automatically if another subscriber logs on to this telephone.
Chapter 13: Favorite screen
Introduction to favorite screen
In the favorite screen you can gather functions and destinations that you use frequently. A maximum of twelve entries are possible. Then you can reach these functions or destinations very easily.
In addition to providing another way of accessing the features, you can use the favorite screen to confirm the features programmed on the feature buttons if, for example, a feature button label is missing or labeled incorrectly.
Toggling between the favorite screen and the telephone status
Press the left/right arrow button.
Displaying the favorite screen in the idle mode
You can set your telephone to show the favorite screen in the idle mode instead of the telephone status.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Favorite screen active Off.
- Select On/Off softkey.
- Press the Save softkey.
Entering a function into the favorite screen
You can add your favorite functions into the favorite screen for easy access.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set function keys.
- Press the OK button.
- Select the favorite function, which you want to add.
- Press the OK button.
- Select Add to Favorite Screen.
- Press the OK button.
Related topics:
Assigning functions to keys on page 72
Entering a destination into the favorite screen
You can add a destination into the favorite screen.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
Deleting a function or a destination from the favorite screen
- Select Keys.
- Press the OK button.
- Select Set destination keys ....
- Press the OK button.
- Select Edit destination key ....
- Press the OK button.
- Select Press destination key.
- Press the OK button.
- Press the appropriate destination key.
- Select Add to Favorite Screen.
- Press the OK button.
Related topics:
Assigning a destination from the phone book to a key on page 73
Deleting a function or a destination from the favorite screen
You can remove seldom used functions or destinations from the favorite screen.
- Press the left/right arrow button, to select the favorite screen.
- Select the function or the destination that you wish to delete.
- Press the Delete softkey.
Caution: The entry is deleted without confirmation.
Chapter 14: Customizing your telephone
Introduction to customizing your telephone
This section provides procedures to set parameters for your telephone, such as the ring tone melody and language. It also provides procedures to manage your function and destination keys, save personal data, manage VIP functions, make anonymous calls, and turn direct dialing on or off. These procedures are performed using options provided in the Avaya menu.
Setting parameters for your telephone
Turning acoustic signaling on or off
You can set the signal tone, ringing tone, and VIP ringing tone to on or off. When for instance the ringing tone is turned off, you will hear only a short beep when you are called.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Do not disturb.
- Press the OK button.
- Select one of the following:
- Signal tone
- Ringing tone
- VIP ringing tone
- Press the On/Off softkey.
- Press the Done softkey.
- To reactivate one of these tones, scroll to the relevant menu item and press On/ Off softkey again.
Changing the acoustic signaling
Use this procedure to change the volume of several tones. You can change the individual settings during a call by pressing + or - on the Volume button.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Set acoustics.
- Press the OK button.
- Select the tone you want to change.
- Handset
- Loudspeaker
- Ringing tone
- Alerting Tone
- Signal Tone
- Headset volume
- Increase or reduce the volume by pressing + or - on the Volume button The new setting sounds immediately to be checked.
- Press the Save softkey.
Note:
You can also change any setting by pressing the numeric key of the desired setting, the right or left Navigation arrows, or the + or - on the Volume button.
Setting the ringing tone melody
You can assign different melodies to incoming calls (internal, external, VIP and partner / line).
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Set acoustics.
- Press the OK button.
- Select Select ringer melody.
- Press the OK button.
- Select the call type you want to change.
- Internal calls
- External calls
- VIP calls
- Partner/Line
- Press the OK button.
- Select the melody you want.
- Press the OK button.
The new ringing melody is played.
Note:
You can change the melody’s playback speed under Set melody.
Related topics:
Introduction to handling calls on page 19
Setting the contrast and the brightness
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Set contrast or Set brightness.
- Increase or reduce the contrast or brightness with the right or left navigation button.
- Press the Done softkey.
If you want to reset the acoustic and contrast settings to the as-supplied status, select Default setting and confirm with the OK button.
Setting the language
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Switch language .
- Press the OK button.
- Select the language you want to use for display texts.
- Press Select softkey.
Adjusting the setting for handsfree operation
You can adjust the handsfree settings for the conditions prevailing in your office and surroundings.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Set handsfree.
- Press the Change softkey to select one of the following.
- echo
- normal
- muffled
- Press the Done softkey.
- Select Handsfree.
Displaying your name and call number on your telephone
You can save your name and call number to have it shown on the display.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Display/Acoustics.
- Press the OK button.
- Select Set own call number.
- Press the OK button.
- Enter your telephone's name and call number.
- Press the Save softkey.
Setting key beep tones to on or off
You can have every press of a key signaled by a beep (key beep).
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Key beep (off).
- Press the OK button.
- Press the On/Off softkey.
- Press the Done softkey.
- To turn the key tone off again, switch the function to Key beep (Off) again.
Displaying time zones *
You can set the time zone so that the current date and time of one of 26 cities from around the world appears in your telephone display.
The time that your telephone shows for a city can differ from the actual time in that city due to differences in summer and winter times in the various countries.
- Press the Avaya Menu button.
- Select Time zones....
- Press the OK button.
- Select the appropriate city.
- Press the OK button.
Saving emergency numbers
You can save ten call numbers that you can dial even if your telephone is locked.
Caution:
The emergency numbers must also be set up in your telephone system, otherwise they cannot be selected when the telephone is locked!
Note:
When using the central lock in your telephone system, the emergency numbers are those defined in your telephone system, not the emergency numbers you saved on your telephone.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Set emergency numbers.
- Press the OK button.
- Select one of the following:
Emergency destin. SOS 1
- .....
Emergency destin. SOS 10
- Press the OK button.
- Enter name and call number.
- Press theAssign softkey.
- Press the function key to which you want to assign the emergency number. You can now see which function or call number was previously assigned to the key.
- Press the Save softkey.
If you press the function key to which the emergency number is assigned, your telephone will automatically switch to handsfree operation and dial the saved emergency number.
Function and Destination keys
Function and destination keys
Use the buttons as function keys or as destination keys. Partner keys are special destination keys.
Related topics:
Setting the deputy key * on page 53
Using the button module BM32 on page 106
Assigning functions to keys
Functions which you use frequently can be assigned to programmable function keys. You can then execute these functions simply by pressing the appropriate keys.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set function keys.
- Press the OK button.
- Select function you want to assign to the key.
- Press the OK button.
- Press the key to which you want to assign the new function. You can now see the function or call number previously assigned to the key.
- Press the Save softkey.
Note:
A partner key can not be simply overwritten. If the key you want is previously set as partner key, this assignment must be cleared, before you can assign a different destination or a function.
Related topics:
Entering a function into the favorite screen on page 62 Reserving a line as executive line on page 55 Introduction to partners on page 45
Private User Mobility * on page 59
Creating a destination key
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set destination keys.
- Press the OK button.
- Confirm Set new destination with OK button.
- Enter name and call number.
- Press the Assign softkey.
- Press the key to which you want to assign the new destination. You can now see the function or call number previously assigned to the key.
- Press Save softkey.
Note:
A partner key can not be simply overwritten. If the key you want is previously set as partner key, this assignment must be cleared, before you can assign a different destination or a function.
Note:
To create a destination key, you can also press an unassigned key in idle mode, and then enter the call number you want to assign to that key
Related topics:
Introduction to partners on page 45
Assigning a destination from the phone book to a key
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set destination keys.
- Press the OK button.
- Confirm Set new destination with the OK button.
Note:
You can also directly press an unassigned key in idle mode to open this menu item.
- Select Copy phone book entry.
- Press the OK button.
- Select the entry you want to assign to the key.
Note:
To go to the desired entry more quickly, you can also enter one or more of the first letters of the name.
- Press the OK button. The name and call number are displayed and can be edited as required.
- Press the Assign softkey.
- Press the key to which you want to assign a new destination. You can now see the function or call number previously assigned to the key.
- Press the Save softkey.
Related topics:
Entering a destination into the favorite screen on page 62
Changing an existing destination
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set destination keys.
- Press the OK button.
- Select Edit destination key.
- Press the OK button.
- Press the key that you want to edit. You can now change the name and the call number.
- Press Save softkey.
Note:
A partner key can not be simply overwritten. If the key you want is previously set as partner key, this assignment must be cleared, before you can assign a different destination or a function.
Note:
You can also change the existing destination by pressing the associated function key and select the Edit destination key menu item.
Deleting key assignments
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select one of the following:
Set destination keys
- Set function keys
- Press the OK button.
- Select one of the following:
Delete destination key
- Delete entry
- Press the OK button.
- Press the key whose assignment you want to delete.
You can now see the function or call number previously assigned to the key.
- Press Delete softkey.
The key is now free again.
Setting up a macro (diversion and pick-up)
You can assign multi-step macro functions to your telephone’s function keys, the multi-step macro functions are applicable to the Avaya 1416 Telephone. This means that you can, for example, activate and deactivate a fixed call diversion by pressing a single key. If you assign a partner diversion to a function key, you can activate a partner diversion or switch between two fixed diversion destinations by pressing a single key.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Keys.
- Press the OK button.
- Select Set macro function.
- Press the OK button.
- Select the macro function you want to assign to the key.
- Call diversion 1 or
- Call diversion 2 or
- Call pick-up 1 or
- Call pick-up 2
- Press the OK button.
- Enter the phone number, to which you want to divert calls (call diversion) or from which you want to pick-up calls on your telephone (pick-up).
- Press the Assign softkey.
- Press the key to which you want to assign the macro function. You can now see the function or call number previously assigned to the key.
- Press the Save softkey.
Related topics:
Answering a call ringing at another phone (pick-up) on page 19 Introduction to call diversion on page 23
Diverting partner calls to your telephone on page 50 Diverting your calls to a partner on page 49
Setting the deputy key * on page 53
Diverting partner calls to partners, extended * on page 52
Relocating the telephone
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Relocate.
- Press the OK button.
The data is saved locally in the telephone. The status message Relocation prepared appears.
- Plug the telephone in at the new location.
The status message Relocation initiated appears on the idle telephone display. When the relocation is finished, Telephone relocated appears.
- To cancel the relocation, select Security > Relocate > OK.
Saving personal data
Saving personal data
For security, you can save your personal telephone settings both locally in the telephone itself and - if enabled by your system administrator - centrally in your communication server. In the communication server, your data is protected with a password. Your system administrator can save or copy your personal telephone data from a central location. But you are able to block central data saving.
Saving data locally
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Save data.
- Press the OK button.
- Select Save data locally.
- Press the OK button.
Saving data locally automatically
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Save data.
- Press the OK button.
- Select Save data at [00:00].
- Enter time at which you want the local data to be saved.
- Select Done.
Saving data centrally
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Save data.
- Press the OK button.
- Select Save data centrally.
- Enter your PIN.
The PIN appears as asterisks "*" in the display.
- Press Done softkey.
Allowing/barring central data saving
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Security.
- Press the OK button.
- Select Save data.
- Press the OK button.
- Select Save centrally.
- Press the OK button.
- Enter your PIN.
- Press Change softkey.
- Press Done softkey.
VIP functions
Preparing VIP functions
You can set up special functions between telephones of your system, provided you have made the appropriate preparations. To do this, certain pre-settings on both the sending and the receiving telephone have to be the same. Two typical applications of the VIP function are described:
- Using the executive telephone as a two-way intercom system to the secretary.
- Announcements from the executive telephone
The sending telephone is called the executive telephone and the receiving telephone the
secretary telephone.
Using the executive telephone as a two-way intercom system to the secretary
Setting up the executive telephone
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select VIP.
- Press the OK button.
- Enter the current PIN.
- Press the OK button.
- Select Send VIP functions.
- Press the Change softkey several times, if necessary, until the setting Authorized
is displayed.
- Select Set VIP partner.
- Select one of the following:
- Entry from phone book
- Entry from key assignment
- Ind.emerg.call
- Partner
- Press the OK button.
- Select the entry for the secretary telephone.
- Press the OK button.
- Select sent to user.
- Press the Change softkey several times, if necessary, until the setting Ann.&Ackn.
is displayed.
Note:
If you select on instead of Ann.&Ackn. only the VIP ring tone will be heard on the secretary phone when the secretary phone is called by the executive phone. Several settings have to be made on the secretary phone for this purpose.
- Press the Done softkey.
Setting up the secretary telephone
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select VIP.
- Press the OK button.
- Enter the current PIN.
- Press the OK button.
- Select Recv.VIP.
- Press the Change softkey several times, if necessary, until the setting you want is displayed.
- all callers if you want VIP functions to be possible for all subscribers
- Authorized if you want VIP functions to only be available to subscribers you specify or have already specified in the Set VIP partner menu.
- Select Set VIP partner.
- Select one of the following:
- Entry from phone book
- Entry from key assignment
- Ind.emerg.call
- Partner
- Press the OK button.
- Select the entry for the executive telephone.
- Press the OK button.
- Select receive from user (off).
- Press the Change softkey.
- Press the Done softkey.
Making announcements from the executive telephone
Setting up the executive telephone
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select VIP.
- Press the OK button.
- Enter the current PIN.
- Press the OK button.
- Select Send VIP functions.
- Press the Change softkey several times, if necessary, until the setting Authorized
is displayed.
- Select Set VIP partner.
- Select one of the following:
- Entry from phone book
- Entry from key assignment
- Ind.emerg.call
- Partner
- Press the OK button.
- Select the entry for the secretary telephone.
- Press the OK button.
- Select sent to user.
- Press the Change softkey several times, if necessary, until the setting announcem.
is displayed.
Note:
If you select on instead of announcem. only the VIP ring tone will be heard on the secretary phone when the secretary phone is called by the executive phone. Several settings have to be made on the secretary phone for this purpose.
- Press theDone softkey.
Setting up the secretary telephone
The secretary telephone is set up exactly like the secretary telephone in an Intercom configuration described above.
Using the VIP functions
After having made one of the preparations
- Using the executive telephone as a two-way intercom system to the secretary
- Making announcements from the executive telephone you can use the VIP functions:
- Press the relevant destination key for the secretary telephone or select the phone book entry.
- Press the Speaker button or lift the handset.
“Intercom”: "Handsfree" is automatically activated on the secretary telephone. The two parties can now speak to each other.
"Announcement": The loudspeaker is activated on the secretary telephone. You can make an announcement.
Note:
You can program an “Announcement" function key. This considerably shortens the process of configuring VIP announcement with reply. Press this function key and enter the call number or press a destination key. If the called subscriber has activated "Receive VIP", the call leads to "announcement with reply". Both the calling and called subscriber receive a conversation window.
This feature may not be available. Your system administrator must configure it for your extension as well as for the extension of the other person. See your system administrator for more information.
Making anonymous calls
You can determine whether your phone number is to be shown to the other parties. This function must be enabled in the communication server.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Dial settings.
- Press the OK button.
- Select Anonymous (Off).
- Press the OK button.
- Press the On/Off softkey.
- Press the Done softkey.
Anonymous call appears in the status display.
Note:
If you want the other parties to be able to see your phone number again, switch the function to
Anonymous (Off) again.
Accepting calls automatically (Handsfree answer back)
You can set up your telephone so that incoming internal calls are accepted automatically. If you receive a call, you will hear a short signal tone and your telephone's microphone and loudspeaker are activated immediately. This means that you can speak to the caller right away.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications.
- Press the OK button.
- Select Answer Call.
- Press the OK button.
- Select Handsfree AB...
- Press the left/right arrow button, to toggle the option.
- Press the On/Off softkey.
- Press the Save softkey.
The status information Handsfree answer back appears on the display.
Next steps
Note:
If you want to switch “Handsfree answer back” off again, switch the function to Handsfree answer back (on) again.
Turning direct dialing on or off
By default, direct dialing is set to on. Then dialing begins immediately when the first digit or a destination is pressed.
You can turn this setting off. Then you can type in a whole call number first and then dial it as a block. You can then check the call number again and correct it if necessary.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Dial settings.
- Press the OK button.
- Select Direct dial. You can set the following parameters:
- Direct destination dial
- Direct digital dial
- Refer-Back destination
- Headset
- Press the OK button.
- Press the On/Off softkey.
- Press the Done softkey.
- To reactivate direct dialing turn the function to Direct dial (On) again.
Turning CSTA Answer Call on or off *
The Computer Service Telephone Application (CSTA) links your telephone network and your PC network together.
When the CSTA Answer Call function is activated in your telephone system a CSTA Answer Call icon appears on your PC monitor screen. You can select this icon to answer an incoming call on your telephone in handsfree mode.
- Press the Avaya Menu button.
- Select Settings.
- Press the OK button.
- Select Applications .
- Press the OK button.
- Select Answer Call....
- Select CSTA Answer Call.
- Press OK.
- Press the OK button.
- Enter your PIN.
- Select one of the following: On or Off.
- Select the Done softkey.
Chapter 15: Using the Avaya Menu
Introduction to the Avaya menu
This chapter provides the procedures to manage call charges, lock your telephone, manage your appointments, and customize your telephone. These procedures are performed using options provided in the Avaya menu.
Managing call charges
Introduction to call charges
All call charges incurred since the last reset are stored and totaled in your telephone system. You can view the charges for your last four calls and delete the charges shown in the display.
You can also have the current charges displayed during a call in units or in currency.
Furthermore, your system also record and account for the call charges for single projects or private calls separately.
Displaying charges during a call
- Press the Avaya Menu button.
- Select Charges.
- Press the OK button.
- Select Charges (off).
- Press the Change softkey.
The charges will appear in the top line of the display while on a call.
Viewing the charge display
- Press the Avaya Menu button.
- Select Charges.
- Press the OK button.
The charges for the last call are selected.
- To view charges for one of the last four calls, select the appropriate line.
- To view the total charges, select Total call charg.
Deleting call charges
- Press the Avaya Menu button.
- Select Charges.
- Press the OK button.
- Select Delete single counter.
- Press the OK button.
Note:
If you want to clear the totals for all calls, you must have this function enabled by your system administrator.
Switching the charge display to units
- Press the Avaya Menu button.
- Select Charges.
- Press the OK button.
- Select Charge displ. (amount).
- Press the Change softkey.
- Press the Done softkey.
Recording charges for private calls and projects *
You want to dial a number with a project PIN or private PIN.
- Enter the external line code that is set up in your telephone system for dialing with a project or private code, e.g. 1.
This external line code may have 1 to 5 digits.
- Enter the code that is set up in your telephone system for private calls or the relevant project, e.g. 3433.
This code may have 1 to 12 digits.
- Enter the desired call number.
- Lift the handset.
The charges for this call are now recorded and accounted in the system with the appropriate project or private code.
Note:
For security reasons, the code is not shown in the display or in the redial or call list. The number with the code cannot be transferred to the phone book. If you would like to call back a call number from the redial or call list with a project code, you have to manually enter the external line code and project code in the redial or call list display.
Locking the telephone
Telephone lock
Locking your telephone prevents unauthorized use during an absence. To unlock your telephone, a Personal Identification Number (PIN) is required.
The following functions are still available when the telephone is locked:
- Answering calls,
- Dialing internal call numbers,
- Dialing emergency call numbers,
- Activating and deactivating call diversions.
Changing the PIN
A PIN is required to unlock your telephone. Before you lock your telephone for the first time, you must change the PIN from the default setting. Your PIN must be four to six digits; the first digit cannot be 0 or 1; and it must not be identical to your call number. After you change your PIN from the default setting, you can change it again at any time. If you forget your PIN, see your system administrator.
If central locking is enabled in the system, the default PIN is "00000" (if five-digit) or "000000" (if six-digit). Contact your system administrator for more information.
- Press the Avaya Menu button.
- Select Lock .
- Press the OK button.
- Select Change PIN.
- Press the OK button.
- Select Old PIN and enter the current PIN.
- Select New PIN and enter the new one.
- Press the Save softkey.
Related topics:
Private User Mobility * on page 59
Locking the telephone
Before you perform this procedure, you must change the PIN from it's default setting.
- Press the Avaya Menu button.
- Select Lock.
- Press the OK button.
- Press the OK button once more.
The status information Telephone locked is shown.
Unlocking the telephone
- Select Telephone locked.
- Press the OK button.
- Enter the current PIN.
- Press the Done softkey.
The status information is cleared.
Setting automatic locking *
If Automatic locking has been activated, the telephone will be locked every day at the same time.
- Press the Avaya Menu button.
- Select Lock.
- Press the OK button.
- Select Automatic locking.
- Press the OK button.
- Scroll to the desired setting.
- Press the OK button.
Note:
This lock function is only put into effect after the phone has returned to idle (where applicable).
Automatic locking is not applied if the telephone has already been locked.
Managing appointments
Appointments (reminders)
You can set your telephone to remind you of important appointments. You can be reminded of up to 10 appointments. You can specify whether you wish to be reminded once or every day.
When the time of the appointment arrives, a signal tone sounds and the message you have entered for the appointment appears in the display.
You can selectively delete appointments you have entered.
Appointment message
At the specified time, the signal tone sounds and the appointment message appears in the display.
If you specified a call number when entering the appointment, it is shown in the display after acknowledgement of the appointment signal. You then only need to lift the handset or press the Speaker button to call the desired call number.
The Appointment expired message remains in the display until you have scrolled through all the expired entries (marked with "!") in the Appointments menu.
Entering a new appointment
- Press the Avaya Menu button.
- Select Appointments.
- Press the OK button.
- Select the New softkey.
- Select Time and enter the time.
- Optionally select Date and enter the date (default is today).
- Optionally select Text and enter the appointment message, to be displayed at the specified time.
- Optionally select Call no. and enter a call number, if you want to call someone at the specified time.
- Select Appointment.
- Select the Change softkey.
- Press the right/left button, to choose one of the following:
- off
- one-time appointment
- daily appointment
- Press the OK button.
The new appointment is indicated as status information.
Acknowledging an appointment
Use this procedure to acknowledge an appointment. When the specified time is reached, a signal tone sounds and the entered appointment message appears on the display.
- Press the ok softkey to turn off the signal tone.
The status information Appointment expired appears in the display.
If you specified a call number when entering the appointment, it is displayed now.
- Lift the handset or press the Speaker button to dial the desired call number.
Viewing appointments
- Press the Avaya Menu button.
- Select Appointments.
- Press the OK button.
The list of all entered appointments is shown, including the expired appointments.
Deleting an appointment
- Press the Avaya Menu button.
- Select Appointments.
- Press the OK button.
- Select the desired appointment.
- Press the OK button.
- Press the Delete menu item.
Chapter 16: Menus
Menu overview
The following table contains an overview of the menu structure of the Avaya 1400 Series telephones. The first three menu levels are shown. The menu structure shown here may differ from the actual menu structure on your telephone. Deviations from the menu overview shown here may arise due to the features used, the accessories in use and the assignment of the function keys. Remarks and notes are shown in italic font.
Menu settings overview
The following table contains an overview of the settings menu structure of the Avaya 1400 Series telephones. Three menu levels are shown starting with the appropriate settings submenu.
Chapter 17: Appendix Remote features
Introduction to remote features
Use these procedures at different locations (for instance at home) being connected to your telephone system via a public network. You can make external calls using the telephone system or you can divert incoming calls from your telephone to another destination.
Calling remote using the system *
You can call your telephone system from outside, e.g. to make expensive overseas calls via the system. The charges are then incurred by the system.
This is possible from any telephone with DTMF suffix dialling. In many cases, you can use only certain pre-set telephones for this feature. Your system administrator will inform you.
"Calling remote using the system" must be enabled by your system administrator. Your system administrator will also tell you the source discrimination code and whether a PIN is required.
- Dial the call number of your telephone system from the external telephone.
- Enter the source discrimination code for your telephone system. You will hear a dial tone as confirmation.
- If necessary, enter your PIN.
- Enter the system’s external line code and the call number you want to call via the telephone system.
This number is dialled immediately.
Changing call diversion remotely *
You can call your telephone system from outside to set up or change a call diversion for your telephone or for other telephones.
This is possible from any telephone with DTMF suffix dialling. In many cases, you can use only certain pre-set telephones for this feature. Your system administrator will inform you.
"Changing call diversion remotely" must be enabled by your system administrator. Your system administrator will also tell you the source discrimination code and whether a PIN is required.
- Dial the call number of your telephone system from the external telephone.
- Enter the source discrimination code for your system. You will hear a dial tone as confirmation.
- Enter the call number of the person for whom you want to change the call diversion.
- If necessary, enter your PIN.
- To set up or to change the call diversion, enter the codes for Activate follow-me, beginning with as asterisk.
- Enter the system’s external line code and the new destination to which you want to divert the calls.
As confirmation, an acknowledgement tone sounds after a short time.
- To deactivate the call diversion, enter the code for Deactivate follow-me.
Chapter 18: Auxiliary devices
Introduction to auxiliary devices
Use the procedures provided in this chapter, if you have a headset or a button module connected to your telephone.
Button module BM32
A BM32 button module provides 32 buttons. You can connect one or two BM32 to your Avaya 1416 telephone. No button module can be connected to the Avaya 1408 telephone.
Your system administrator can assign the buttons according to your preferences. The following options are available to you:
- Call numbers of your partners
- Individual destinations (frequently used call numbers)
- Functions, e.g. door opener, call diversion or hotel functions, etc.
Use the BM32 buttons just like the destination or partner keys located directly on your telephone: Lift the handset and then press the button for the desired subscriber.
Using the button module BM32
Use the BM32 buttons like the destination or function keys located on your telephone.
To make a call, press the button for the desired person.
Related topics:
Function and destination keys on page 71
Using a headset
Using a headset
You can connect a headset to your telephone. Before you can use a cordless convenient headset you must activate it.
Caution:
Prevent damage to your hearing! If you use a headset continually, loud sounds in the earphone can, over a long period of time, lead to hearing damage. Therefore, always reduce the volume during loud conversations to a pleasant level (use the — Volume button).
- To make a call, enter the call number and press the Headset button.
- To answer a call, press the Headset button.
- If you are on a headset call and somebody shall overhear it, he or she can lift the handset.
Using the handset somebody can listen, but not talk.
- To continue a headset call using the handset, lift the handset and press the Headset
button.
You continue the conversation with the handset as usual.
- To continue a handset call using the headset, take the headset and press the
Headset button.
You now talk via the headset. The button's LED lights up.
- If you are on a handset call and somebody shall overhear it, take the headset and press the Headset button, give him or her the handset.
- To end a headset call and disconnect, press the Headset button and replace the handset if necessary.
- To switch on monitoring, press the Speaker button. The button's LED lights up.
Note:
Even if you have activated "direct dialling" or "answer call" via headset this will not be supported with usual wireless headsets. Please ask your administrator.
About operating cordless headsets
Operating a cordless headset is different from operating a corded one:
- Instead of pressing the HEADSET key on the telephone, you have to press the Talk button on the headset itself. Do not press the HEADSET key on the telephone. Otherwise you will not be able to answer or to end calls as usual.
- Second calls are not signaled in the headset.
- The ringing tone on the telephone may not be set to Off. Otherwise calls will not be signaled in your headset.
- When Automatic line seizure has been set (IntelliStand): You immediately dial when you lift the headset from the cradle. Replace the headset in the cradle to automatically disconnect the call.
Chapter 19: Appendix Contact Center
If you are agent of a Contact Center and want to know what functions and buttons does your telephone provide for this purpose, look it up. Refer to your system administrator or your supervisor, if you need more information.
The system administrator is in charge of your telephone system, to set the Auto answer mode for instance or to control the usability of certain features. Your supervisor is in charge of the Contact Center, to organize the agent groups or define the job codes for instance as well as to cut-in your calls, if you request help.
Logging into the Contact Center
You can log into the Contact Center using your personal call number and your personal password. After logging in, you will receive Contact Center calls and furthermore your own calls with your personal call number.
Pausing
You can switch temporarily out of the Contact Center. You need your personal password to switch in again. Meanwhile the status information User pause enabled ... is shown in the display.
Accepting in Auto answer mode
You can accept Contact Center calls automatically on your headset. At the end of the conversation, the call is automatically disconnected and you can immediately get the next Contact Center call. The status information Auto answer on ... is shown in the display. Either you may activate or deactivate this mode during the Login dialog or it is set by your system administrator.
Signing on to an agent group / Signing off from an agent group
Up to five agent groups can be assigned to your telephone at any time. You can sign on and off each of these agent groups individually.
Changing your password
You can change your personal password at any time, if you have the necessary authority.
Lengthening and Canceling wrap-up time
After each Contact Center call you have a certain amount of time, called wrap-up time, to complete on-screen data entry for instance. You can lengthen it manually (if you have the authority) or cancel it prematurely. During this time either the status information Wrap-up time automatic ... or Wrap-up time manually ... is shown in the display.
Entering the job code
According to how your system is set up, you can or must enter a job code for each Contact Center call for statistical purpose. Please ask your supervisor about the defined job codes, their length and their meaning.
You are prompted by Enter job code in the display. Enter the appropriate job code and press the Send softkey. If you don't enter a correct job code in a certain time, you are reminded by Job code missing or by Invalid job code (if your input is wrong).
Requesting help of the supervisor
If you need help during a Contact Center call, there are two steps for requesting supervisor support: either silent monitoring (called Supervisor Assistance) or intervention moreover (called Supervisor Emergency). The supervisor can listen to your call or even cut into your call at any time.
Contact Center buttons
If you are an agent in a contact center, you have eight buttons and some function keys or softkeys to control its features. All buttons have two LEDs red and green as well as a paper label indicating their meanings.
CC function
Pressing this function key you open the Login dialog to enter your password for the Contact Center and to set the Auto answer mode (if you have the authority).
Sign on / Sign off
This button controls Sign on and Sign off to the selected agent group (toggle button). The according LED informs, when all the agent groups are signed off, or when the telephone system enforced a Sign off.
The involved agent softkeys are displayed as Sign on or Sign off simultaneously.
Job Code
If a job code is designed it can be optional or mandatory. This button controls its input. It is activated only when a job code is designed. Press this button to open the input dialog for an optional job code in the display.
Contact Center buttons
Cancel Wrap-up time
Pressing this button you can finish the Wrap-up time. It is activated either automatically by the system or manually by pressing the Wrap-up time manual button (no toggle function).
The LED as well as the display inform you about the Wrap-up time state.
Wrap-up time manual
This button activates the special state Wrap-up time manual (to lengthen the automatic wrap-up time, if you have the authority). You can deactivate it by pressing the Cancel Wrap- up time button (no toggle function).
The red LED as well as the display inform you about the special state Wrap-up time manual.
Pause
This button activates the Pause state. When you press this button next time, an input dialog opens in the display to input the password for the end of the Pause state.
The LED as well as the display inform you whether the Pause state is activated or not.
Programming of Agent groups
This button controls the programming of five agent groups. They are identified by numbers from 001 until 250. Ask your supervisor for which agent groups you shall sign on and which priority you shall specify. To open a dialog for programming in the display during runtime (if you have the authority), press this button, and enter three digits for the appropriate number, followed in the next line by the according priority.
The LEDs are off.
Supervisor Assistance
This toggle button controls your request for silent Supervisor Assistance. To withdraw your request press it once more.
Supervisor Emergency
This toggle button controls your request for intervention, called Supervisor Emergency. To withdraw your request press it once more.
Select Agent group
This softkey controls the selection of at most five agent groups, for which the agent wants to sign on or sign off. If the agent has signed on one agent group at least, this softkey manages Sign on or Sign off for additional agent groups, you don't have to use the Sign on / off button.
Chapter 20: Abbreviations
Index
A
acknowledging
appointment 95
acoustic signaling
turning off 65
adding
partner to partner group 53
adjusting
handsfree operation 68
agent groups 110
anonymous calling 84
answering
call 33
calls 19
on hold 20
partners 46
pick-up 19
second call 21
somewhere else 27
delete 95
automatic
diversion 24
Avaya menu 89
B
beep 48
BM32 105
brightness 68
buttons 7
C
call charges 89
changing remotly 103
call log 37
call number
on display 69
callback
automatic 16
anonymous 84
central phone book entry 15
external 13
internal 13
partners 46
phone book entry 14
remote using the system 103
speakerphone 15
with a destination key 14
display during a call 89
last calls 90
private calls 91
projects 91
total 90
units amount 90
coaching 110
multiple 31
three-party 29
contrast 68
CSTA
answer call 86
cut-in 17
D
central 79
deactivating
call number display 20
deleting
appointment 95
from the favorite screen 63
voice messages 44
deputy key 53
LEDs 10
phone book 73
direct dialing 85
disconnecting 35
discrimination code 103
displaying
call number 69
favorite screen 61
name 69
time zones 70
after time 23
automatic 24
on busy 23
partner calls 50
to partners 49
unconditional 23
do not disturb 65
double call 23
DTMF suffix dialling 103
E
editing
phone book entry 40
entering
appointment 94
destination into the favorite screen 62
function in the favorite screen 62
executive line
partners 55
F
favorite screen 61
diversion 76
LEDs 10
macro 76
pick-up 76
H
handling
calls 19
handsfree 15
handsfree answer back 85
handsfree operation
setting 68
headsets
cordless 107
hiding
partner keys 47
idle mode 61
J
job code 110
joining
another call 17
K
key beep 69
key tone 69
assigning partners 46
partner 45
L
language 68
LEDs
on keys 10
legal notices 2
telephone 92
M
macro 76
remote using the system 103
managing
voice messages 43
menu
overview 97
overview settings 99
messages 43
monitoring 15
multiple conference call 32–35
referring back 34
muting 20
N
name
on display 69
O
Index
overview 7
P
parameters 65
partner
setting up a connection 56
LEDs 10
activating beep 48
adding 53
answering 46
assigning button module 49
calling 46
executive line 55
hiding keys 47
keys 46
pick-up 46
removing 54
setting up 45
signaling 55
pause 110
personal data 77
calling entry 14
central 15
deleting entry 41
editing entry 40
new entry 39
partners 46
preparing 27
private user mobility 59
logging off 60
R
receptionist 56
redialing
automatic 16
relocating
telephone 77
reminder 94
remote
calling 103
changing call diversion 103
partner from partner group 54
requesting
automatic callback 16
automatic redialing 16
ringing tone 65
S
saving
personal data 77
second call 22
setting
automatic locking 93
setting up a connection
partner 56
settings menu 65
sign on/off 110
signal tone 65
silent monitoring 110
source discrimination code 103
speakerphone 15
supervisor
assistance 110
emergency 110
switching
favorite screen 61
telephone status 61
switching off 28
T
telephone display icons 11
telephone status 61
time zones 70
call 21
on hold 21
U
unlocking
telephone 93
V
viewing
appointment 95
executive telephone 80
secretary telephone 80
using 83
Related Articles
IP Office 1408 1416 Quick Reference Guide
IP Office 1408/1416 Quick Reference Issue 1 Redialing a Previous Number Press Redial. Use the up/down cursor to scroll through the calls. To call the highlighted contact, press Call. Calling from Your Call Log You can use your call history to make ...Desktop Softphone User Guide
Welcome to the Desktop Softphone User Guide Experience the future of communication with our cutting-edge Desktop Softphone application, designed to bring the power and flexibility of VoIP technology to your Windows or Mac computer. Our application ...Avaya IP Office: Block Specific Incoming Caller IDs
This How-To covers blocking a specific number from being able to get through your Incoming Call Routes on an Avaya IP Office. This guide is based around release 9.1, but it also covers earlier releases. Step 1: Create A New Incoming Call Route Go to ...IOS Softphone User Guide
Welcome to the IOS Softphone User Guide Navigating the world of communication has never been easier, thanks to our state-of-the-art IOS Softphone application. Designed with both simplicity and functionality in mind, our softphone app transforms your ...Android Softphone User Guide
Welcome to the Android Softphone User Guide Navigating the world of communication has never been easier, thanks to our state-of-the-art Android Softphone application. Designed with both simplicity and functionality in mind, our softphone app ...
